Range V - Filtration Boxes (CDF-A & CDF-P Models)
![Range V - Filtration Boxes (CDF-A & CDF-P Models) Range V - Filtration Boxes (CDF-A & CDF-P Models)](images/serie_v_caisson_de_filtration_cdf-p.jpg)
USE AREA
- The electric fan allows the exhaust of toxic vapours generated inside your safety cabinet. The vapours are purified by the active coal filter and rejected without danger in the atmosphere.
CONFORMITY
- Electric fan in compliance with ISO 5801, 9614/1, AMCA 210-85; 0 marking.
- Electric fan in compliance with ATEX norm on request. Please contact us.
ADVANTAGES
- Adaptable to all of our cabinets.
- No modification of building's structure required.
- Simple and aesthetic fitting.
- Easy connection between the cabinet and the vent box.
- Connection by flexible tube Ø 100mm (in option).
TECHNICAL SPECIFICATIONS
Filtration Box Cdf - A Model (Not Shown On The Picture)
- Built in steel 12/10th.
- White epoxy paint RAL 9010.

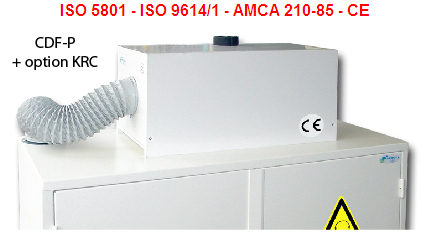

Filtration Box CDF - P Model
- Built in Cellular PVC.
- White colour.
Each box contains 2 independent compartments:
Filtration Compartment
- Active coal filter type « candle » H150 X Ø 150mm (CDFF15 model) must be changed at least once a year.
- Filter settled on the box by 3 lugs and airtightness insured thanks to a rubber seal.
Ventilation Compartment
- Electric engine with scroll in PVC:
- 220/240 volts – 50Hz – 52,3dB(A)
- Flow 80m3/hour - Protection IP24
- Exhaust intlet Ø 100 mm / outlet Ø 75 mm.
- Filter settled on the box by 3 lugs and airtightness insured thanks to a rubber seal.
OPTIONS
Connecting KIT (KRC)
This kit allows to connect easily your vent box to your safety cabinet:
- 1 connection unit Ø 100mm(ref. CHJ) to be fixed on the cabinet air outlet.
- 1 metre of flexible tube Ø 100 mm (ref. KL100).
- 2 clamp collars Ø 100mm (ref. CDS100).
DOWNLOAD
To download this documentation, click here.
Reference |
Description |
Dimensions H x W x D (mm) |
Equiped with active coal filter |
Weight (kg) |
CDF-A |
Filtration box in steel with filter |
285 x 545 x 285 |
CDFF15 |
13 |
CDF-P |
Filtration box in cellular PVC with filter |
305 x 580 x 300 |
CDFF15 |
10 |
KRC |
Connecting kit for box |
- |
1 |
|
KL100 |
1 metre flexible tube Ø 100 mm |
- |
- |
0,2 |
CHJ |
Connection unit Ø 100mm |
- |
- |
0,1 |
CDS100 |
Clamp collar Ø 100mm |
- |
- |
- |
CDFF15 |
Active coal filter for "standard" vapours (green) |
Filter must be changed |
3 |
CDFF20 |
Active coal filter for organic vapours (yellow) at
least once a year |
3 |
CDFF35 |
Active coal filter for corrosive vapours (blue) |
3 |
The manufacturer keeps the right to modify technical characteristics without notice. Edition 02/2008.
