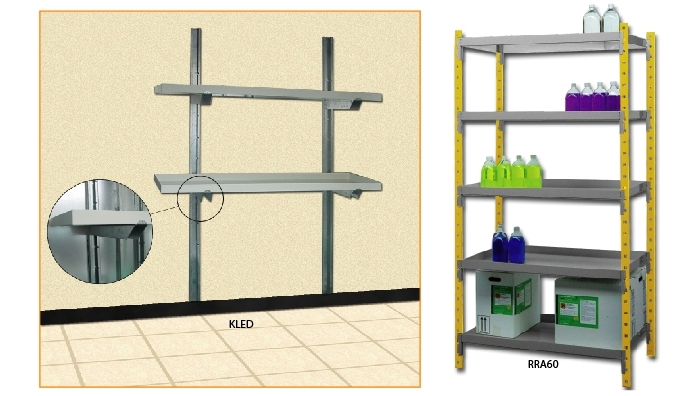

Range R - Safety shelving (KLED, RRA40 and RRA60 models)
![Range R - Safety shelving (KLED, RRA40 and RRA60 models) Range R - Safety shelving (KLED, RRA40 and RRA60 models)](images/serie_r_rayonnages_de_securite_kled_rra40_rra60.jpg)
CONFORMITY
- In compliance with polluting liquids storage regulation (May 2nd 1998, article 10).
ADVANTAGES
- For corrosive, toxic, noxious, pollutant and flammable storage.
- Allows to store products by categories and chemical families.
- Accidental leaks rapidly located.
- Retention tanks with edges prevent the cans from falling.
- Easy sight of stored products.
WALL SHELVINGS IN STEEL.
For Toxic, Noxious, Pollutant and Flammable Products.
Each Kit Contains:
- 2 zinc coated steel posts to set on the wall.
- 2 steel retention shelves / tanks with epoxy paint RAL 9010 finish. Acceptable load: 100 kg per level equally dispached.
- 4 adjustable strong angles made of zinc-coated steel. It allows to place the retention shelves/tanks on the steel posts.
CAUTION! The user has to select the corresponding fixing system (not provided) to the wall according to the weight charge which will be stored. ( only for ref.: KLED).
STEEL SHELVING
For Toxic, Noxious, Pollutant And Flammable Products Storage
- 5 levels of storage adjustable in height (step every 6,25cm).
- Acceptable load per level: 250 kg.
- Sturdy steel construction with yellow epoxy paint RAL 1004 finish.
- Removable steel retention tanks:
- - Grey epoxy paint RAL 7035.
- Height : 50 mm.
- Available in 2 depths: 400mm or 600mm.
OPTIONS
- Industrial absorbing mat (Ref.: JF10D).
Reference |
Description |
Dimensions
H x W x D (mm) |
Storage
capacity (L) |
Retention capacity (L) |
Weight (kg) |
RRA40 |
Steel shelving of 400 mm depth |
2000 x 1000 x 400 |
180 |
90 |
50 |
RRA60 |
Steel shelving of 600 mm depth |
2000 x 1000 x 600 |
270 |
135 |
75 |
KLED |
Wall shelving in steel |
1800 x 1500 x 550 |
140 |
70 |
24 |
The manufacturer keeps the right to modify technical characteristics without notice. Edition 02/2008.
