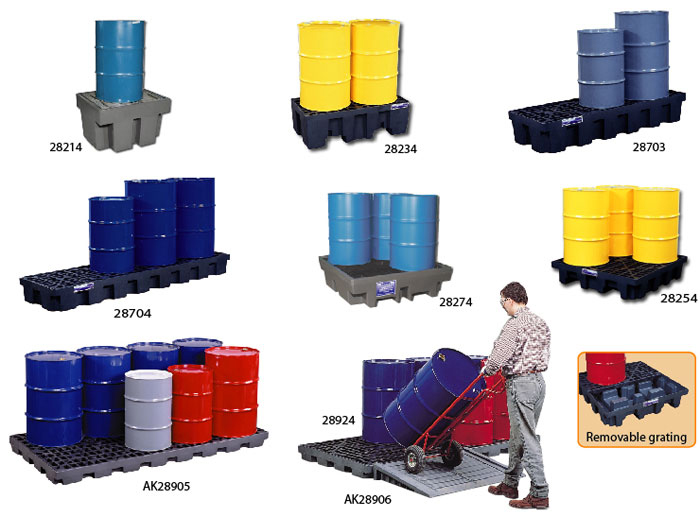

Range G - Pallets & Accumulation Centers for Spill Containment
![Range G - Pallets & Accumulation Centers for Spill Containment Range G - Pallets & Accumulation Centers for Spill Containment](images/range-g-pallets-and-accumulation-centers-spill-containment.jpg)
CONFORMITY
- In compliance with polluting liquids storage regulation (May 2nd 1998, article 10).
- In compliance with EPA 40 CFR 264.175 and UFC (Uniform Fire Code) specifications.
ADVANTAGES
- High chemical resistance.
- Easy cleaning.
TECHNICAL SPECIFICATION
- Built in high density polyethylene (HDPE).
- Removable grating made of high density polyethylene (HDPE).
- From 1 to 8 drums of 60, 100 or 200 L storage.
- Wide forklift pockets facilitate relocation (only for 28234 and 28254 models).
OPTIONS
- Companion ramp for accumulation center 28924 and AK28905 (ref. AK 28906).
- Joining clips to connect 2 accumulation centers 28924 and AK28905 (ref. 28926).
- Industrial absorbing mat (ref. JF10D).
Reference |
Description |
Dimensions
H x W x D (mm) |
Authorized load (kg) |
Retention capacity (L) |
Weight (kg) |
28214 |
1
drum great capacity retention pallet |
525 x
900 x 700 |
350 |
225 |
22 |
28234 |
2
drums (inline) retention pallet |
390 x
1250 x 640 |
1134 |
250 |
20 |
28703 |
3
drums (inline) retention pallet |
290 x
1850 x 640 |
1704 |
285 |
39 |
28704 |
4
drums (inline) retention pallet |
230 x
2460 x 640 |
2268 |
285 |
50 |
28254 |
4
drums (in square) retention pallet |
260 x
1250 x 1250 |
2268 |
273 |
38 |
28274 |
4
drum great capacity retention pallet |
300 x
1300 x 1300 |
1500 |
410 |
44 |
28924 |
6
drums (in square) retention pallet |
140 x
1850 x 1250 |
3175 |
243 |
42 |
AK28905 |
8
drums (in square) retention pallet |
140 x
2460 x 1250 |
3629 |
322 |
84 |
AK28906 |
Ramp
for the centers |
160 x
1220 x 840 |
454 |
- |
18 |
28926 |
Joining clips (one pair - stainless steel) |
- |
- |
- |
0,1 |
The manufacturer keeps the right to modify technical characteristics without notice. Edition 03/2009.
