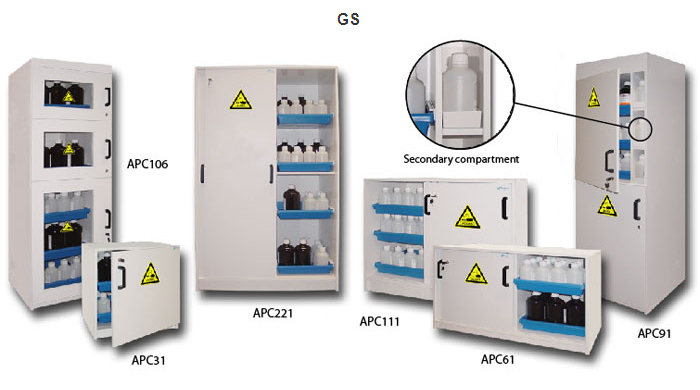

Range 8.A - Corrosion Resistant Laboratory Cabinets for Acids & Bases
CONFORMITY
- Large warning labels in compliance with ISO 3864, 92/58/CEE European directive and NF X08.003 norm.
- In compliance with recommendations of The National Institute for research and Safety at work (I.N.R.S).
- Tested and approved by MPA DRESDEN laboratory.
ADVANTAGES
- Especially designed for acid and bases storage.
- Built in cellular PVC with a great resistance to vapour aggressions and corrosive liquids.
- Cabinets with sliding drawers for acid or/and base storage.
PASSIVE SECURITY
- Built entirely in white cellular PVC.
- "Corrosive", "Base" and "Toxic" large warning labels (only the 3 for APC106 model).
- Adjustable retention sliding drawers for each major compartment.
- Independant compartments (except APC31 model) for acid, base or/ and toxic products storage (only for APC106 model).
- Each compartment is divided in a major and a secondary storage area (except APC61, APC111 and APC221 models).
ACTIVE SECURITY
- High and low opening vent Ø 100 mm with connecting piece for possible exhaust.
- Door(s) with lock:
-Handling door(s) for APC31, APC91 and APC106 models.
-Sliding doors for APC61, APC111 and APC221 models.
- Adjustable leveling jack feets.
| Ref. |
External dim.
H x W x D (mm) |
Number of compartment |
Number of retention |
Storage capacity(kg) |
Retention capacity (L) |
Weight (kg) |
| Major |
Secondary |
Drawers in major comp. |
Shelves in
secondary comp. |
| APC31 |
670 x
635 x 615 |
1 |
1 |
2 |
2 |
68 |
28 |
35 |
| APC61 |
670 x
1135 x 615 |
2 |
0 |
4 |
0 |
96 |
44 |
70 |
| APC91 |
1850
x 635 x 615 |
2 |
2 |
6 |
6 |
150 |
84 |
84 |
| APC111 |
900 x
1135 x 615 |
2 |
0 |
6 |
0 |
144 |
66 |
93 |
| APC221 |
1850
x 1135 x 615 |
2 |
0 |
8 |
0 |
192 |
88 |
124 |
| APC106 |
1850
x 635 x 615 |
3 |
3 |
5 |
5 |
170 |
70 |
89 |
The manufacturer keeps the right to modify technical characteristics without notice. Edition 02/2008.
