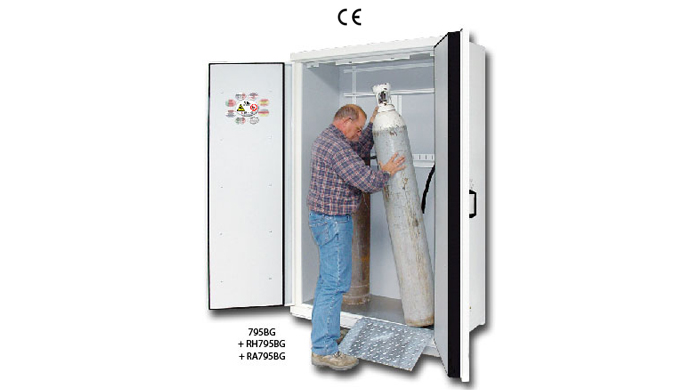

Range 7.90BG - Safety Cabinets for Gaz Cylinders
![Range 7.90BG - Safety Cabinets for Gaz Cylinders Range 7.90BG - Safety Cabinets for Gaz Cylinders](images/range_790bg-gaz-cylinders.jpg)
CONFORMITY
- Normalized labelling according to ISO 3864 and 92/58/CEE directive.
ADVANTAGES
- Fire resistance during 15 minutes in accordance with ISO 834 fire heating curve.
PASSIVE SECURITY
- Double wall construction:
-Outer housing made sheet of steel.
-Inner body made of H.P.L. coated sheet (high pressure laminated).
- Thermal insulation panel between the walls avoiding thermal bridges.
- Hight quality epoxy coating RAL 9010.
- Large warning label.
- Earthing link.
ACTIVE SECURITY
- Air inlet and outlet channel in rear panel. Easy connection on the roof of the cabinet Ø 100 mm (labelled as exhaust
channel).
- In case of fire, a thermo-fuse automatically seals off the ventilation system.
- Thermo-expanding seals of the doors allow keeping the internal body fireproof.
- Separately locking door(s) with cylinders locks.
- Self-closing doors with possibility to keep the doors open. If the temperature rises to 50°C, a fuse link closes the doors
automatically.
All our models are delivered without internal equipments. They all need to equiped with horizontal C-rail for fixing gas bottles, access ramp, etc. See chart.
Model |
Description |
External
dim. H x W x D (mm) |
Internal
dim. H x W x (mm) |
Storage capacity (B50) |
Recommended fittings |
Weight (kg |
794BG |
Tall cabinet with one
door |
2075x705x615 |
1855x565x410 |
2 |
1 |
300 |
RH794BG |
Horizontal C-rail for
fixing 2x gas bottles B50 |
- |
- |
- |
1 |
3 |
RA794BG |
Acess ramp |
- |
- |
- |
1 |
10 |
795BG |
Tall cabinet with two
doors |
2075x1260x615 |
1855x1120x410 |
4 |
1 |
410 |
RH795BG |
Horizontal C-rail for
fixing 4x gas bottles B50 |
- |
- |
- |
1 |
6 |
RA795BG |
Access ramp |
- |
- |
- |
1 |
6 |
Our cabinets are also available with a depht in 900mm (Model 793BG) or 1400mm (Model 796BG) - Contact-us for more informations.
The manufacturer keeps the right to modify technical characteristics without notice. Edition 05/2008.
