Range 7.90 - Safety Cabinets - Type 90 Minutes for Flammable Products
CONFORMITY
- Tested and approved according to EN 14470-1 (04/2004) and EN 1363-1 (06/2000).
- Normalized labelling according to ISO 3864, 92/58/CEE Directive and EN 14470-1 (04/2004).
ADVANTAGES
- Fire resistance during 90 minutes (approved Type 90) in accordance with ISO 834 fire heating curve.
- Tested and approved by an independent European laboratory.
PASSIVE SECURITY
- Double wall construction:
- Outer housing made sheet of steel.
- Inner body made of H.P.L. coated sheet (high pressure laminated).
- Thermal insulation panel between the walls avoiding thermal bridges.
- Hight quality epoxy coating RAL 9010.
- Marking as per EN 14470-1.
- Earthing link.
ACTIVE SECURITY
- Air inlet and outlet channel in rear panel. Easy connection on the roof of the cabinet Ø 100 mm (labelled as exhaust channel).
- In case of fire, a thermo-fuse automatically seals off the ventilation system.
- Thermo-expanding seals of the doors allow keeping the internal body fireproof.
- Separately locking doors with cylinders locks.
- Self-closing doors with possibility to keep the doors open. If the temperature rises to 50°C, a fuse link closes the doors automatically.
| Model |
Description |
Ext. Dimensions
H x W x D (mm) |
Int. Dimensions
H x W x D (mm) |
Storage
capacity (L) |
Weight
(kg) |

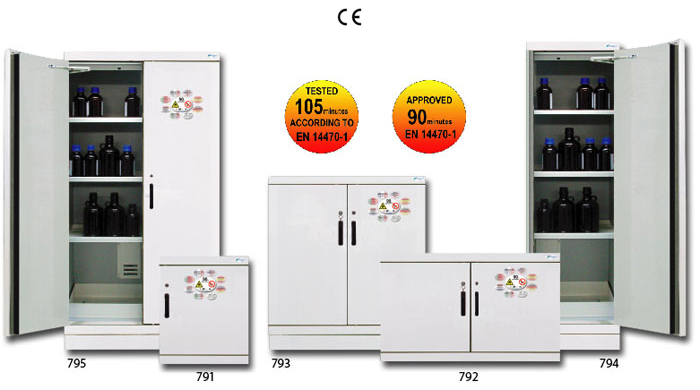

| 791 |
Under-bench cabinet with one door |
670 x 635 x 615 |
530 x 490 x 410 |
30 |
150 |
| 792 |
Under-bench cabinet with two doors |
670 x 1135 x 615 |
530 x 1000 x 410 |
60 |
230 |
| 793 |
Working cover cabinet with two doors |
1080 x 1135 x 615 |
820 x 1000 x 410 |
115 |
320 |
| 794 |
Tall cabinet with one door |
1880 x 635 x 615 |
1620 x 490 x 410 |
130 |
310 |
| 795 |
Tall cabinet with two doors |
1880 x 1135 x 615 |
1620 x 1000 x 410 |
250 |
430 |
