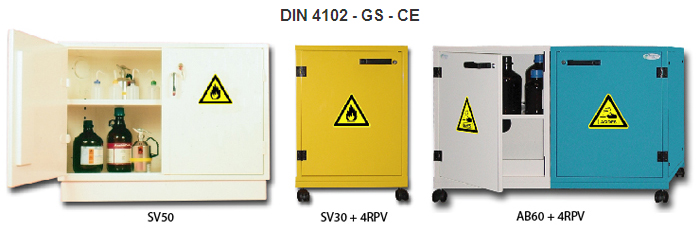

Range 6 - Under-Bench Safety Cabinets
![Range 6 - Under-Bench Safety Cabinets Range 6 - Under-Bench Safety Cabinets](images/serie_6_armoires_de_securite_sous_paillasse.jpg)
CONFORMITY
- In compliance with DIN 4102 (SV50 model).
- Large warning labels in compliance with ISO 3864, 92/58/CEE European directive and norm NF X08.003.
- Fan: CE marking.
- Tested and approved by MPA DRESDEN laboratory.
ADVANTAGES
- One cabinet for each type of chemical used.
- Possibility of connection between models (example: toxic + corrosive, see table) except for SV50 model.
- Especially designed to settle under the bench.
PASSIVE SECURITY
- Built in steel 15/10th (except SV50 model: built in steel 12/10th + 20 mm mineral fiber insulation).
- Double wall door in steel 15/10th (except SV50 model: double wall doors in steel 12/10th + 20 mm mineral fiber insulation).
- Epoxy paint : Yellow RAL 1023 (flammable products SV30 model); Blue RAL 5015 (corrosive products AC30 model); White RAL 9010 (solvent SV50 model, base products BA30 model and toxic products TO30 model).
- Large warning labels.
- Adjustable steel retention shelf (corrosive models equiped with retention tray in PVC).
- Removable steel retention tank (100 mm high) at the bottom of the cabinet (for "Corrosive" model, tank made in PVC).
ACTIVE SECURITY
- High and low vents Ø 100 mm.
- Self-closing system of the door (except SV50 model).
- Doors with key-lock system.
- Adjustable feet (except SV50 model).
OPTIONS
All cabinets (except SV50 model)
- 4 swivel castors (2 with locking) ref. 4 RVP.
- Electric fan IP 44; 220 v; CEI 61.28 agreements; 90 m3/h for "Acids", "Base" and "Toxic" models. (ref. M100/4).
- Power regulation box for fan (ref. BCDE).
SV50 model only
- SECURITY kit (self-closing system of the doors + firebreak valve for air outlet) in option.
WARNING! The AC30 model should not be used with high- corrosive products (sulfuric acid, nitric acid, phenol, hydrocloric acid) and requires an exhausting system to improve the life cycle. For high-corrosive products storage please refer to our 8A range (ref. APC30). For flammable products storage in laboratories refer to our brochure EN 14470-1.
Reference |
External dim.
H x W x D (mm) |
Internal dim.
H x W x D (mm) |
Storage capacity (L) |
Retention capacity (L) |
Number of shelves |
Weight (kg) |
SV50 (flammables) |
750**x1000x450
**without feet: height 670mm |
650x950x400 |
50 |
42 |
1 |
62 |
SECURITE+ |
For SV50 model, self-closing system of the doors +
firebreak valve for air outlet. |
SV30 (flammables) |
670x550x500 |
650x530x470 |
30 |
28 |
1 |
30 |
AC30 (acids) |
670x550x500 |
650x530x470 |
30 |
28 |
1 |
30 |
BA30 (bases) |
670x550x500 |
650x530x470 |
30 |
28 |
1 |
30 |
TO30 (toxics) |
670x550x500 |
650x530x470 |
30 |
28 |
1 |
30 |
AB60 (acids+bases) |
670x1100x500 |
(2x) 650x530x470 |
30 |
28 |
1 |
30 |
AS60 (acids+flammables) |
670x1100x500 |
(2x) 650x530x470 |
30 |
28 |
1 |
30 |
BS60 (bases+flammables) |
670x1100x500 |
(2x) 650x530x470 |
30 |
28 |
1 |
30 |
AT60 (acids+toxics) |
670x1100x500 |
(2x) 650x530x470 |
30 |
28 |
1 |
30 |
BT60 (bases+toxics) |
670x1100x500 |
(2x) 650x530x470 |
30 |
28 |
1 |
30 |
ST60 (flammables+toxics) |
670x1100x500 |
(2x) 650x530x470 |
30 |
28 |
1 |
30 |
ABS90 (acids+bases +flammables) |
670x1650x500 |
(3x) 650x530x470 |
30 |
28 |
1 |
30 |
ABST120 (acids+bases +flammables+toxics) |
670x2200x500 |
(4x) 650x530x470 |
30 |
28 |
1 |
30 |
4RPV |
4 swivel castors (2 with locking); height with
castors: 730 mm. |
1 |
M100/4 |
Single-phase fan (90 m3/h -220 volts) for acids,
bases or toxics models. |
1 |
BCDE |
Power regulation box for fan ref : M100/4 |
1 |
The manufacturer keeps the right to modify technical characteristics without notice. Edition 02/2008.
