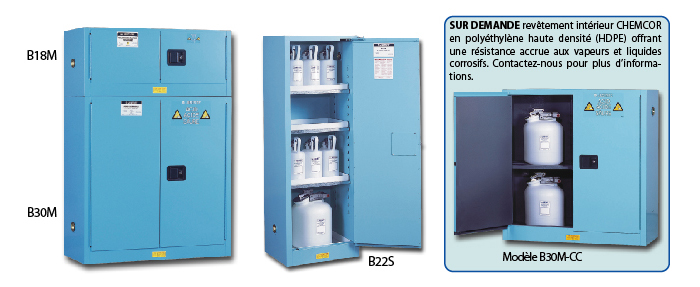

Range 4 - FM Safety Cabinets for Corrosive Products
CONFORMITY
- In compliance with NFPA (National Fire Protection Association), OSHA (Occupational Safety and Head Administration), UL (Underwriters Laboratories) and FM (Factory Mutual internationnal) specifications.
ADVANTAGES
- Sturdy construction for use in industry.
- Integrated self-latching handle.
- Self-closing** or manual doors.
- Continuous piano hinge provides smooth closure.
- Various models available.
PASSIVE SECURITY
- Built in double wall steel with 38 mm of insulating air space.
- Blue epoxy paint.
- Adjustable galvanized spillslope safety steel shelves with high density polyethylene (HDPE) shelves trays.
- Liquid tight containment sump holds leaks on the bottom (50mm heigh).
- Static ground connection.
- B24M and B24S models equipped with extra polywork tray.
ACTIVE SECURITY
- High and low vent Ø 50 mm with grid.
- Continuous piano hinge.
- Manual or self-closing doors.
- 3 points stainless steel bullet latching system.
- Doors with key-locking system.
OPTIONS
- Additional shelves.
- Industrial absorbent mats for retention tank (10 pieces by pack) Ref. JF10D.
ON DEMAND
Interior Chemcor®: liner ensures complete corrosion resistance and protection.
| Ref. |
Doors with
lock |
External dim. HxWxD (mm) |
Internal dim. HxWxD (mm) |
Storage capacity (L) |
Retention capacity (L) |
Number of shelves |
HDPE
Protections |
Weigth (kg) |
| B04M |
Manual |
610 x 430 x 430 |
465 x 345 x 360 |
15 |
6 |
1 |
2 |
30 |
| B04S |
Self-closing |
32 |
| B18M |
Manual |
610 x
1090 x 460 |
515 x
1005 x 390 |
64 |
20 |
1 |
2 |
75 |
| B18S |
Self-closing |
78 |
| ESP18 |
Additional shelf for 64 litres cabinets |
4 |
| B22M |
Manual |
1650
x 585 x 460 |
1560
x 500 x 390 |
86 |
10 |
3 |
4 |
90 |
| B22S |
Self-closing |
92 |
| ESP22 |
Additional shelf for 86 litres cabinets |
4 |
| B24M |
Manual |
910 x
890 x 560 |
710 x
795 x 455 |
90 |
18 |
1 |
2 |
92 |
| B24S |
Self-closing |
95 |
| ESP24 |
Additional shelf for 90 litres cabinets |
4 |
| B30M |
Manual |
1120
x 1090 x 460 |
1025
x 1005 x 390 |
113 |
20 |
1 |
2 |
105 |
| B30S |
Self-closing |
108 |
|
| ESP30 |
Additional shelf for 113 litres cabinets |
5 |
| B45M |
Manual |
1650
x 1090 x 460 |
1560
x 1005 x 390 |
170 |
20 |
2 |
3 |
140 |
| B45S |
Self-closing |
143 |
| ESP45 |
Additional shelf for 170 litres cabinets |
5 |
| B60M |
Manual |
1650 x 860 x 860 |
1560 x 770 x 780 |
228 |
30 |
2 |
3 |
170 |
| B60S |
Self-closing |
173 |
| ESP60 |
Additional shelf for 228 litres cabinets |
9 |
* These cabinets are designed for high corrosive products (nitric acid, sulfuric acid, phenol, hydrochloric) and require an exhausting system to improve their life cycle. For the high corrosive products please refer to our Ranges 8.A and 10.
For the exhausting system refer our V Range. ** According to models.
The manufacturer keeps the right to modify technical characteristics without notice. Edition 02/2008.
