Range 3/5 - Safety Cabinets for Toxic, Noxious or Flammable Products
CONFORMITY
- In accordance with DIN 4102.
- Normalized labelling according to ISO 3864, NF X08.003 norms, and 92/58/CEE directive.
- Tested and approved by MPA DRESDEN laboratory.
ADVANTAGES
- Large storage capacity.
- Cabinets for various families of products storage (noxious, toxics and flammable) with same design for a better homogeneity.

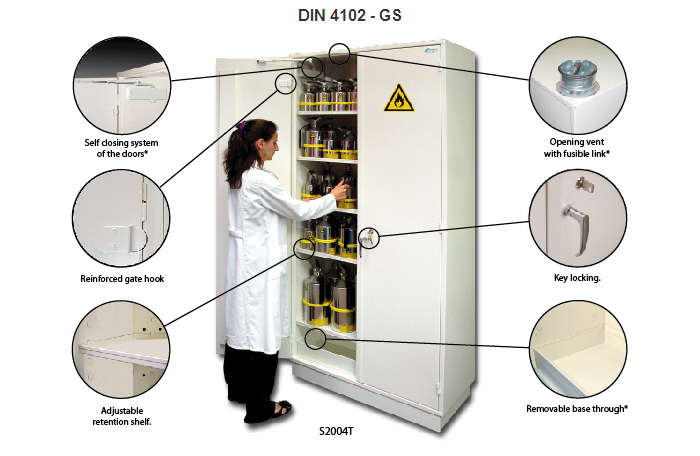

PASSIVE SECURITY
- Built in double wall steel 12/10th.
- 20 mm thickness of mineral fibre insulation.
- White epoxy paint RAL 9010.
- "Toxic", “Noxious” or "Flammable" large warning label.
- Adjustable retention shelves.
ACTIVE SECURITY
- Inside lateral ventilation shaft with high opening and connecting piece Ø 100 mm.
- Reinforced gate hook, sealing off by 2 points lock.
- Key locking.
OPTIONS
- Additional retention shelf (G03, G04 or G06).
- Retention shelf in PVC (EP03, EP04 or EP06).
- Base through in steel (GL03, GL04 or GL06).
- Base through in PVC (BP03, BP04 or BP06).
- Absorbing carpets (ref. JF10).
- Self closing system of the doors. .
RANGE 5 OPTIONS
- Self closing system at 70°C with open doors locking system.
- Additional retention shelf (G03, G04 or G06).
- Retention shelf in PVC (EP03, EP04 or EP06).
- Base through in PVC (BP03, BP04 or BP06).

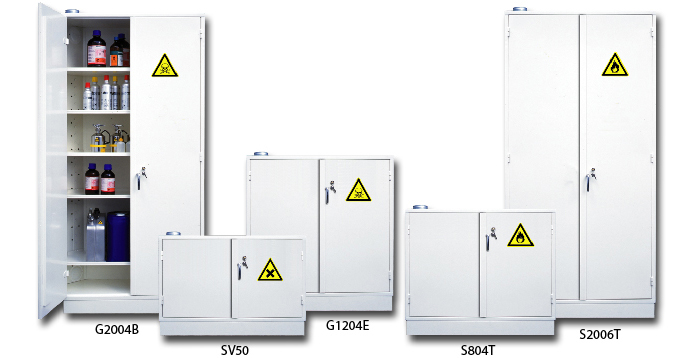

RANGE 3
| Reference |
Description |
External dim. HxWxD (mm) |
Internal dim. HxWxD (mm) |
Storage capacity (L) |
Number of shelves |
Weight (kg) |
| SV50 |
Under-bench cabinet (depth: 450mm) |
750** x 1000 x 450 |
650 x 950 x 400 |
50 |
1 |
62 |
| G803G |
Low cabinet
(depth: 300mm) |
895 x 1000 x 300 |
745 x 950 x 250 |
70 |
1 |
58 |
| G804G |
Low cabinet
(depth: 450mm) |
895 x 1000 x 450 |
745 x 950 x 400 |
100 |
1 |
68 |
| G806G |
Low cabinet
(depth: 600mm) |
895 x 1000 x 600 |
745 x 950 x 550 |
135 |
1 |
82 |
| G1204E |
Working cover cabinet (depth: 450mm) |
1295 x 1000 x 450 |
1145 x 950 x 400 |
150 |
3 |
92 |
| G2004B |
Tall cabinet
(depth: 450mm) |
2095 x 1000 x 450 |
1945 x 950 x 400 |
250 |
5 |
145 |
| G2006B |
Tall cabinet
(prof. 600mm) |
2095 x 1000 x 600 |
1945 x 950 x 550 |
300 |
5 |
166 |
RANGE 5
| Reference |
Description |
External dim. HxWxD (mm) |
Internal dim. HxWxD (mm) |
Storage capacity (L) |
Number of shelves |
Weight (kg) |
| S604T |
Under-bench cabinet (depth: 450mm) |
750** x 1000 x 450 |
650 x 950 x 400 |
50 |
1 |
69 |
| S804T |
Low cabinet
(depth: 450mm) |
895 x 1000 x 450 |
745 x 950 x 400 |
100 |
1 |
75 |
| S806T |
Low cabinet
(depth: 600mm) |
895 x 1000 x 600 |
745 x 950 x 550 |
135 |
1 |
90 |
| S1204T |
Working cover cabinet(depth: 450mm) |
1295 x 1000 x 450 |
1145 x 950 x 400 |
150 |
1 |
99 |
| S2004T |
Tall cabinet
(depth: 450mm) |
2095 x 1000 x 450 |
1945 x 950 x 400 |
250 |
3 |
152 |
| S2006T |
Tall cabinet
(depth: 600mm) |
2095 x 1000 x 600 |
1945 x 950 x 550 |
300 |
5 |
174 |
OPTIONS
| Reference |
Description |
Weight (kg) |
| G03 |
Additional shelf for G803G |
3 |
| G04 |
Additional shelf for
SV50-G804G-G1204E-G2004B-S604T-S804T-S1204T-S2004T |
4 |
| G06 |
Additional shelf for G806G-G2006B-S806T-S2006T |
5 |
| EP03 |
Retention shelf in PVC for G803G |
6 |
| EP04 |
Retention shelf in PVC for
SV50-G804G-G1204E-G2004B-S604T-S804T-S1204T-S2004T |
6 |
| EP06 |
Retention shelf in PVC for G806G-G2006B-S806T-S2006T |
6 |
| GL03 |
Base trough for G803G (100mm height) |
4 |
| GL04 |
Base trough for
SV50-G804G-G1204E-G2004B-S604T-S804T-S1204T-S2004T
(100mm height) |
5 |
| GL06 |
Base trough for G806G-G2006B-S806T-S2006T (100mm
height) |
6 |
| BP03 |
Base trough in PVC for G803G |
3 |
| BP04 |
Base trough in PVC for
SV50-G804G-G1204E-G2004B-S604T-S804T-S1204T-S2004T |
4 |
| BP06 |
Base trough in PVC for G806G-G2006B-S806T-S2006T |
5 |
| FTR5 |
Self closing sytem at 70°C with open doors locking
system (must be ordered together with the cabinet) |
- |
*Only for Range 5 cabinets or in option for Range 3
**In option : height 670mm. Contact-us for more information.
The manufacturer keeps the right to modify technical characteristics without notice. Edition 02/2008.
