Range 2 - FM Safety Cabinets for Flammable Products

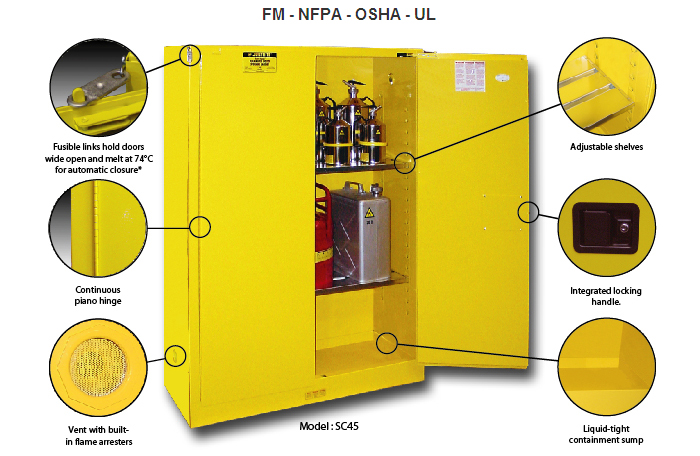

![Range 2 - FM Safety Cabinets for Flammable Products Range 2 - FM Safety Cabinets for Flammable Products](images/range-2-fm-safety-cabinets-fo-flammable-products.jpg)
CONFORMITY
- In accordance with NFPA (National Fire Protection Association), OSHA (Occupational Safety and Health Administration), UL (Underwriters Laboratories) and FM (Factory Mutual international) regulations.
ADVANTAGES
- Sturdy construction.
- Integrated locking handle.
- Cabinets with self-closing doors. The fusible links hold doors wide open and melt at 74°C for automatic closure*.
- Continious piano hinge provides smooth closure.
- Many models are available.
PASSIVE SECURITY
- Built in double wall steel with 38 mm of insulating air space.
- Yellow epoxy paint.
- Adjustable shelves.
- 50 mm liquid-tight containment sump.
- Built in grounding connector.
ACTIVE SECURITY
- Lateral high and low vent Ø 2'' (50mm) with flame arresters.
- Continuous piano hinge.
- Manual or self-closing doors.
- 3 points lock with fail-safe closing mechanism and locking handle.
- Key locking system.
OPTIONS
- Additional shelf.
- Absorbing carpets (ref. JF10).
- Ventilation or filtration boxes.
All FM approved cabinets are recommended by the U.S. insurance companies.

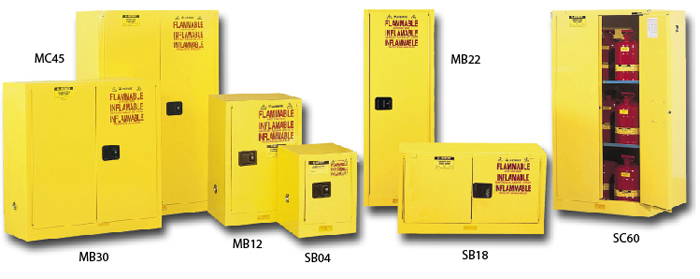

![](images/serie_2_armoires_de_securite_fm_pour_produits_inflammables_gamme.jpg)
Ref. |
Door types |
Description |
External dim. HxLxP (mm) |
Internal dim. HxLxP (mm) |
Storage capacity (L) |
Retention capacity (L) |
Number of shelves |
Weight (kg) |
MB04 |
Manual |
Under-bench cabinet with 1 door |
610x430x430 |
465x345x360 |
15 |
6 |
1 |
30 |
SB04 |
Self-closing |
32 |
MB12 |
Manual |
Working cover cabinet with 1 door |
960x610x460 |
795x510x390 |
45 |
10 |
1 |
65 |
SB12 |
Self-closing |
67 |
ES12 |
Additional shelf for 45L cabinet |
3 |
MB18 |
Manual |
Under-bench cabinet with 2 doors |
610x1090x460 |
515x1005x390 |
64 |
20 |
1 |
75 |
SB18 |
Self-closing |
78 |
ES18 |
Additional shelf for 64L cabinet |
4 |
MB22 |
Manual |
Tall cabinet with 1 door |
1650x585x460 |
1560x500x390 |
83 |
10 |
3 |
90 |
SC22 |
Self-closing |
92 |
ES22 |
Additional shelf for 83L cabinet |
4 |
MB30 |
Manual |
Working cover cabinet with 2 doors |
1120x1090x460 |
1025x1005x390 |
113 |
20 |
1 |
105 |
SB30 |
Self-closing |
108 |
ES30 |
Additional shelf for 113L cabinet |
4 |
MC45 |
Manual |
Tall cabinet with 2 doors |
1650x1090x460 |
1560x1005x390 |
170 |
20 |
2 |
1740 |
SC45 |
Self-closing |
143 |
ES45 |
Additional shelf for 170L cabinet |
4 |
MC60 |
Manual |
Tall cabinet with 2 doors |
1650x860x860 |
1560x770x780 |
228 |
30 |
2 |
170 |
SC60 |
Self-closing |
173 |
ES60 |
Additional shelf for 228L cabinet |
8 |
MC90** |
Manual |
Tall cabinet with 2 doors |
1650x1100x860 |
1560x1020x780 |
340 |
40 |
2 |
220 |
SC90** |
Self-closing |
223 |
ES90** |
Additional shelf for 340L cabinet |
10 |
*On self-closing models.
**Model not on stock and not shown on the picture.
The manufacturer keeps the right to modify technical characteristics without notice. Edition 02/2008.
