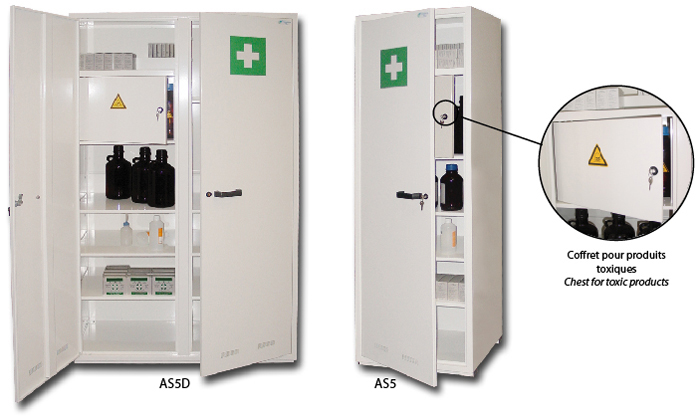

Range 19 - Medecine Cabinets
![Range 19 - Medecine Cabinets Range 19 - Medecine Cabinets](images/serie_19_armoires_a_pharmacie_avec_coffret.jpg)
TECHNICAL SPECIFICATIONS
- Built in steel 12/10th.
- White epoxy paint RAL 9010.
- “First-aids” normalized labels.
- Shelves adjustable in height.
- Door(s) with key locking system.
- Chest for toxic products:
- Dimensions: H 370 x W 600 x P 450 mm.
- Dangerous products security reinforced.
- Chest can be used as a shelf with step.
- “Toxic products” normalized label.
- Key locking system.
- Different lock and keys for the cabinet and the chest.
OPTIONS
DOWNLOAD
To download this documentation, click here.
![](images/serie_19_armoires_a_pharmacie_mf15_mf25.jpg)
TECHNICAL SPECIFICATIONS
- Possibility to assemble the models together.
- Built in steel 10/10th.
- Epoxy paint: white RAL 9010.
- “First-aids” normalized label.
- Shelves adjustable in height.
- Key locking system.
Reference |
Description |
External dim. H x W x D (mm) |
Internal dim. H x W x D (mm) |
Shelf number |
Weight (kg) |

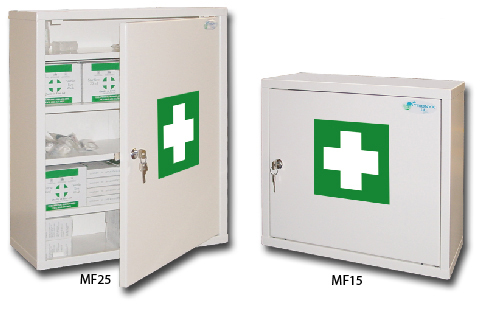

MF15 |
Wall mounted medicine cabinet (small model) |
380 x 470 x 205 |
370 x 460 x 170 |
2 |
10 |
MF25 |
Wall mounted medicine cabinet (tallmodel) |
580 x 470 x 205 |
570 x 460 x 170 |
4 |
15 |
AS5 |
One door tall medicine cabinet |
1830 x 560 x 500 |
1805 x 550 x 470 |
3 x ESAS5 + coffret |
80 |
AS5D |
Two doors tall medicine cabinet |
1830 x 1100 x 500 |
1805 x 1090 x 470 |
3 x ESAS5D + 1 x ESAS5 + coffret |
155 |
ESAS5 |
Additional shelf for AS5 |
10 x 550 x 470 |
- |
- |
4 |
ESAS5D |
Additional shelf for AS5D |
10 x 1090 x 470 |
- |
- |
8 |
