Range 18 - Safety Cabinets with Glazed Doors for Toxics & Noxious Products
CONFORMITY
- In compliance with the articles 5162 and 5170 of health regulation.
- Large warning labels in compliance with ISO 3864, 92/58/CEE European directive and NF X08.003 norm.
- Tested and approved by MPA DRESDEN laboratory.
ADVANTAGES
- Economic solution for dangerous products storage.
- Easy sight of the stored products thanks to glazed doors.
- Available in 2 versions, for toxic products or for noxious products.
PASSIVE SECURITY
- Built in steel 10/10th.
- White epoxy paint RAL 9010.
- "Toxic" or "Noxious" large warning labels.
- 3 adjustable shelves in height.
- 1 removable retention base trough at the bottom (180 mm high).
ACTIVE SECURITY
- High opening vent Ø 100 mm with connecting piece for possible exhaust.
- 4 mm thick glazed door(s).
- Handling door(s) with key-locking system.
OPTIONS
WARNING! For safety reasons (chemical reactions between incompatible products) the different product families must be stored separately.
| Reference |
Desciption |
External dim.
H x W x D (mm) |
Internal dim.
H x W x D (mm) |
Storage capacity (L) |
Retention capacity (L) |
Number of shelves |
Weight (kg) |
| AJ3 |
One door cabinet for toxic products |
1975x530x400 |
1920x510x380 |
150 |
19 |
3 |
75 |

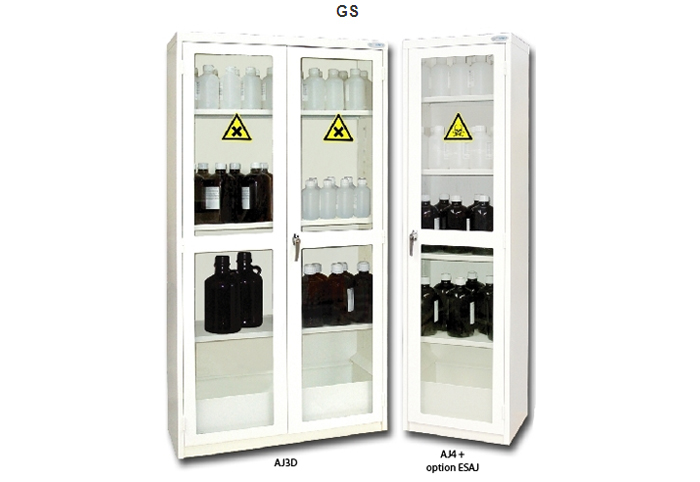

| AJ3D |
Two doors cabinet for toxic products |
1975x1000x400 |
1920x980x380 |
300 |
37 |
3 |
145 |
| AJ4 |
One door cabinet for noxious/irritant products |
1975x530x400 |
1920x510x380 |
150 |
19 |
3 |
75 |
| AJ4D |
Two doors cabinet for noxious/irritant products |
1975x1000x400 |
1920x980x380 |
300 |
37 |
3 |
145 |
| ESAJ |
Additional shelf for one door cabinet |
25x510x350 |
- |
- |
- |
- |
4 |
| ESAJD |
Additional shelf for two doors cabinet |
25x510x350 |
- |
- |
- |
- |
8 |
The manufacturer keeps the right to modify technical characteristics without notice. Edition 02/2008.
