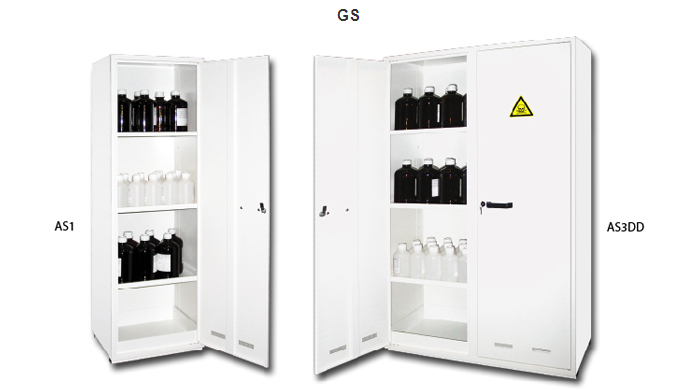

Range 14 - Secure Cabinets for Dangerous Products
CONFORMITY
- In compliance with the articles 5162 and 5170 of health regulation.
- In compliance with recommendations of The National Institute of Research and Safety at work.
- Large warning labels in compliance with ISO 3864, 92/58/CEE European directive and NF X08.003 norm.
- Tested and approved by MPA DRESDEN laboratory.
ADVANTAGES
- Inexpensive solution for your dangerous products storage.
- Available in 3 versions : "Flammable", "Corrosive" or "Toxic" products.
PASSIVE SECURITY
- Built in steel 10/10th.
- White epoxy paint RAL 9010.
- "Flammable", "Corrosive", "Toxic" or "Harmful" large warning labels.
- 3 adjustable retention shelves.
- Removable retention tank at the bottom (100 mm height). .
ACTIVE SECURITY
- High and low vents:
- double grating air inlets in the bottom of the doors.
- top air outlet Ø 100 mm with grating.
- Handling doors with key-locking system
OPTIONS
- Additional shelf.
- Retention shelf and tank in PVC for corrosive products.
- Industrial absorbent mat for retention tank (Ref. JF10D).
WARNING! For safety reasons, do not store different product families together in the same compartment. Do not store high-corrosive products like sulfuric acid, nitric acid, hydrochloric acid...
| Reference |
Desciption |
External dim.
H x W x D (mm) |
Internal dim.
H x W x D (mm) |
Storage capacity (L) |
Retention capacity (L) |
Number of shelves |
Weight (kg) |
| AS1 |
Single door cabinet for flammable products |
1825x560x500 |
1760x540x480 |
150 |
41 |
3 |
60 |
| AS1DD |
Double doors cabinet for flammable products |
1825x1120x500 |
1760x1100x480 |
300 |
83 |
3 |
105 |
| AS2 |
Single door cabinet for corrosive products |
1825x560x500 |
1760x540x480 |
150 |
41 |
3 |
60 |
| AS2DD |
Double doors cabinet for corrosive products |
1825x1120x500 |
1760x1100x480 |
300 |
83 |
3 |
105 |
| AS3 |
Single door cabinet for toxic products |
1825x560x500 |
1760x540x480 |
150 |
41 |
3 |
60 |
| AS3DD |
Double doors cabinet for toxic products |
1825x1120x500 |
1760x1100x480 |
300 |
83 |
3 |
105 |
| AS4 |
Single door cabinet for irritating/harmful products |
1825x560x500 |
1760x540x480 |
150 |
41 |
3 |
60 |
| AS4DD |
Double doors cabinet for irritating/harmful products |
1825x1120x500 |
1760x1100x480 |
300 |
83 |
3 |
105 |
| EE1 |
Additional shelf for single door cabinet |
20x540x470 |
- |
- |
5 |
- |
4 |
| ESASDD |
Additional shelf for double doors cabinet |
20x1080x470 |
- |
- |
10 |
- |
8 |
| SEPVC |
Retention shelf in PVC* |
20x530x460 |
- |
- |
5 |
- |
0,5 |
| SBPVC |
Retention base trough in PVC* |
100x530x460 |
- |
- |
22 |
- |
1 |
*CAUTION! For double doors models 2 pieces by level are required.
The manufacturer keeps the right to modify technical characteristics without notice. Edition 02/2008.
