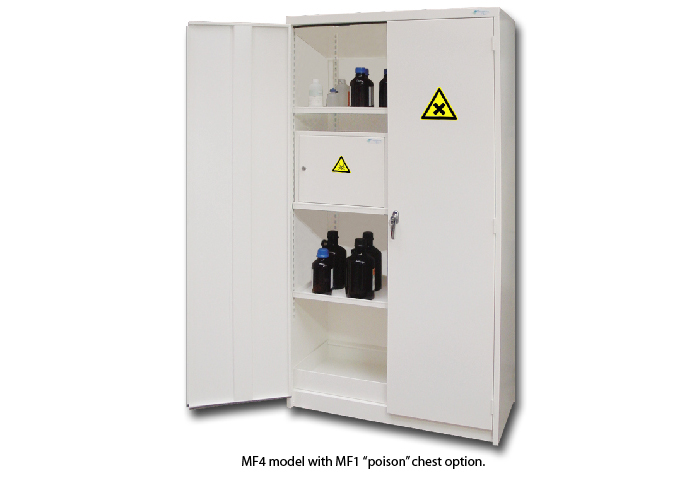

Range 13 - Safety Cabinets for Reagents & Toxic Products
![Range 13 - Safety Cabinets for Reagents & Toxic Products Range 13 - Safety Cabinets for Reagents & Toxic Products](images/range_13_ventilated_safety_cabinets_for_reagents_and_toxic_products.jpg)
CONFORMITY
- In compliance with the health regulation articles (5162 and 5170).
- Large warning labels in compliance with ISO 3864, 92/58/CEE European directive and NF X08.003 norm.
- Fan in compliance with EN 60335-2-80 5 (part 2), EN 68529, CE 107-53/1986, 0 marking standards.
ADVANTAGES
- Integrated electric fan.
- Large storage capacity.
PASSIVE SECURITY
- Built in steel 10/10th.
- White epoxy paint RAL 9010.
- "Toxic" or "Noxious" large warning labels (to specify with your order).
- 3 retention shelves adjustable in height with rack system.
- Removable retention tank at the bottom of cabinet (100 mm height).
ACTIVE SECURITY
- Integrated electric fan: 220 volts - 0,1 A - 18 W; flow 90 m3/h; IPX4 protection; sound level 37,5 Lp dB(A) (3m).
- Double handling doors with 3 points key-locking system.
OPTIONS
- Additional shelf.
- Additional retention shelf in PCV.
- Sliding drawer.
- "Poison" chests (see below).
![](images/serie_13_armoires_de_securite_ventilee_reactifs_et_produits_toxiques_mf1_mf2.jpg)

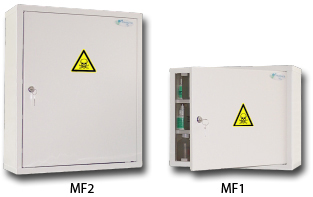

Can be used as wall mounted cabinets to store dangerous products or as poison chest in your safety cabinet ref MF4.
- Built in steel 10/10th.
- White epoxy paint RAL 9010.
- "Toxic" warning label in compliance with ISO 3864, 92/58/CEE European directive and NF X08.003 norm.
- Shelves adjustable in height: 2 units for the model MF1 and 4 for the model MF2.
- Handling door with key-locking system.
- Possibility to fix on the wall.
- Possibility to connect 2 models.
WARNING! For safety reasons (chemical reactions between incompatible products) the different product families must be stored separately.
Reference |
Desciption |
External dim. H x W x D (mm) |
Internal dim. H x W x D (mm) |
Storage capacity (L) |
Retention capacity (L) |
Number of shelves |
Weight (kg) |
MF1 |
Poison chest 12 l |
380 x 470 x 205 |
370 x 460 x 170 |
12 |
- |
2 |
10 |
MF2 |
Poison chest 19 l |
580 x 470 x 205 |
570 x 460 x 170 |
19 |
- |
4 |
15 |
MF4 |
Cabinet with ventilation |
1975 x 1000 x 500 |
1920 x 980 x 480 |
250 |
60 |
3 |
100 |
MF4SV |
Cabinet without ventilation |
1975 x 1000 x 500 |
1920 x 980 x 480 |
250 |
60 |
3 |
100 |
ESMF4 |
Additional shelf |
- |
- |
- |
- |
- |
6 |
SPMF4 |
Additional shelf in PVC |
- |
- |
- |
- |
- |
5 |
TCMF4 |
Sliding drawer |
- |
- |
- |
- |
- |
10 |
The manufacturer keeps the right to modify technical characteristics without notice. Edition 03/2009.
