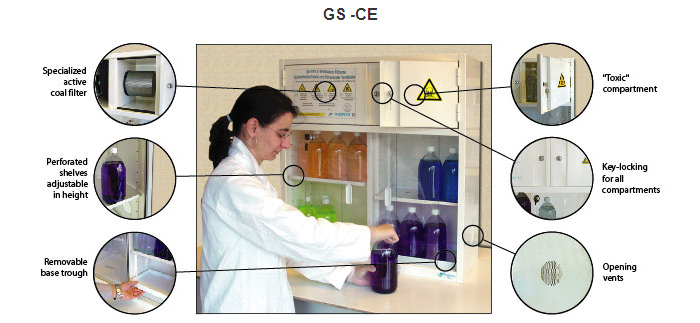

Range 12 - Wall Mounted or Stackable Filtering Ventilation Cabinet
![Range 12 - Wall Mounted or Stackable Filtering Ventilation Cabinet Range 12 - Wall Mounted or Stackable Filtering Ventilation Cabinet](images/range-12-wall-mounted-or-stackable-filtering-ventilation-cabinet.jpg)
PURPOSE
- This cabinet is specialy designed for storage of dangerous products in laboratories and may be:
- fixed to the wall when space is limited,
- or settled on a bench or a low piece of furniture.
CONFORMITY
- Large warning labels in compliance with: ISO 3864, 92-58/CEE European directive and NF X08.003 norm.
- Fan in compliance with ISO 5801, AMCA 210-85 and 0 marking.
- In compliance with the health regulation articles (5162 and 5170).
- Tested and approved by MPA DRESDEN laboratory.
ADVANTAGES
- Possibility to separate dangerous products by families (in com- pliance with The National Institute of Health and Safety at work).
- Independent cabinet ensuring your security.
- Elimination of dangerous vapours. No need of connection to an exhausting system.
- No modification of building's structure required.
- Easy sight of the stored products.
- High efficiency active coal filter treated in accordance with the stored products.
- Easy replacement of the active coal filter.
- Perforated shelves allowing liquids flow in case of leak.
- Removable base trough for easy cleaning.
TECHNICAL SPECIFICATION
- Built in steel 12/10th.
- White epoxy paint RAL 9010.
- Storage in 3 different compartments:
1"Toxic" Compartment (Except A11 Model)
- Handling door. v
- Key-locking system.
- Normalized « Toxic » warning label.
2 "Chemical Products Compartment
- Polycarbonate sliding glazed doors.
- Key locking system. v
- 2 perforated adjustable shelves (1 per compartment).
- 2 removable retention tanks (1 per compartment).
« Vent / Filtration » Compartment (Exceprt Af11 Model)
- Noiseless fan: 220 volts - 50 Hz; Flow 80m3/ hour; Protection IP 24; Sound level 52,3 dB(A)- 61,6 dB.
- Key locking system.
- Air outlet Ø 75 mm.
OPTIONS
- Active coal filter: the cabinets are delivered without active coal filter. You have to choose one in the chart below in accordance with the type of products you are storing.
For Other Options Please Contact Us
- Filteralarm: allows to detect the saturation level of the active coal filter or any air defaults (ref. SFA).
- Dust pre-filter (ref. PFF10).
- Special legs.
- Industrial absorbent mat.
- Also available without ventilation/filtration system and "Toxic" com- partment (ref. AF11).
Caution! The Active Coal Filter Must Be Changed At Least Once A Year.
Reference |
Description |
Dimensions HxWxD (mm) |
Number of shelves |
Number of base trough |
Storage capacity (bottles) 1L or 2,5L |
Weight (kg) |
To
connect |
Filtering ventilation |
Standards |
Organics |
Corrosives |
AF10 |
AF10
+ CDF-F15 |
AF10
+ CDF-F20 |
AF10
+ CDF-F35 |
Cabinet with ventilation system |
External 850 x 810 x 325 Internal (2x) 535 x 385 x
275 (1x) 250 x 300 x 305 |
2 |
2 |
41 or
8 |
50 |
AF11 |
|
|
|
Cabinet without ventilation system |
External 550 x 810 x 325 Internal (2x) 535 x 385 x
275 |
2 |
2 |
36 or
8 |
35 |
The manufacturer keeps the right to modify technical characteristics without notice. Edition 11/2008.
