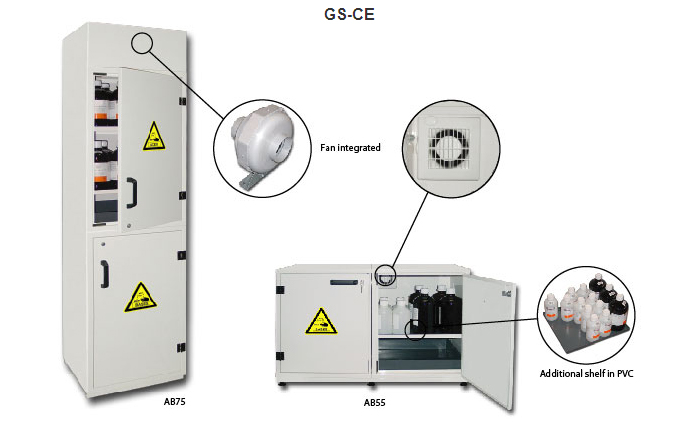

Range 11.A - Safety Cabinets with 2 Compartments
CONFORMITY
- Large warning labels in compliance with ISO 3864, 92/58/CEE European directive and NF X08.003 norm.
- CE marking.
- Tested and approved by MPA DRESDEN laboratory.
ADVANTAGES
- Stricktly separated acid and base storage in compliance with the National Institute of research and Safety at work.
PASSIVE SECURITY
- Built in steel 15/10th. Double wall doors in steel 15/10th.
- White epoxy paint RAL 9010.
- "Acid" and "Base" large warning labels.
- Retention shelves in steel adjustable in height.
- Additional retention shelves in PVC for "Acid" compartments.
- Removable base through in steel at the bottom of each com- partment (except "Acid" compartments: base through in PVC).
ACTIVE SECURITY
- High and low vents Ø 100 mm (for possible external connexion).
- Handling doors with key-locking system.
- 220V-50Hz electric fan.
OPTION
- Industrial absorbing mat (ref. JF10D).
- Flexible tube (ref. KL100).
- Clamp collar (ref. CDS100).
| Ref |
Description |
Dimensions HxWxD (mm) |
Compartment
capacity |
Nb of
shelves |
Nb of
base through |
Fan |
Compartment type |
W.
(kg) |
| Storage (L) |
Retention (L) |
Acids |
Bases |
Solvents |
| AB55 |
Under-bench cabinet with fan |
Ext.
685x1105x500 Int. (2x) 650x530x470 |
60
(2x 30) |
56
(2x 28) |
2 |
2 |
90 |
Yes |
Yes |
No |
60 |
| AB55SC |
Under-bench cabinet without fan |
- |
Yes |
Yes |
No |
| AS55SC |
Under-bench cabinet without fan |
- |
Yes |
No |
Yes |
| AB75 |
Tall
cabinet with fan |
Ext.
2080x560x560 Int. (2x) 890x530x470 |
110
(2x 55) |
70
(2x 35) |
4 |
2 |
110 |
Yes |
Yes |
No |
75 |
| AB75SC |
Tall
cabinet without fan |
Ext.
1830x560x560 Int. (2x) 890x530x470 |
- |
Yes |
Yes |
No |
68 |
| AS75SC |
Tall
cabinet without fan |
- |
Yes |
No |
Yes |
The manufacturer keeps the right to modify technical characteristics without notice. Edition 02/2008.
