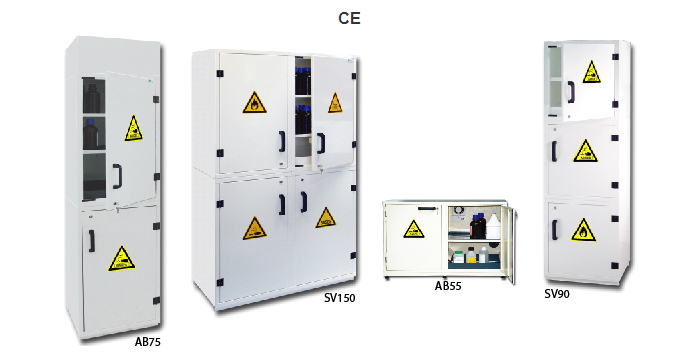

Range 11.A - Compartments Safety Cabinets
CONFORMITY
- In compliance with the health regulation articles (5162 and 5170).
- Large warning labels in compliance with ISO 3864, NF X08.003 norm and 92/58/CEE European directive.
- Fan with CE marking.
- Tested and approved by MPA DRESDEN laboratory.
ADVANTAGES
- Possibility to separate the dangerous products families in compliance with The National Institute of research and Safety at work (INRS).
PASSIVE SECURITY
- Built in steel 15/10th. Double wall door in steel 15/10th.
- White epoxy paint RAL 9010.
- "Toxic", "Flammable", "Bases" or "Acids" large warning labels.
- Steel retention shelves adjustable in height.
- Retention shelf in PVC for "Acid" compartment.
- 1 removable base trough in steel for bases compartment (except "Acids" compartment: base trough in PVC).
ACTIVE SECURITY
- High and low vents Ø 100 mm outlet (for possible external connexion).
- Handling doors with key-locking system.
- 220V-50Hz electric fan (AB55 and AB75 models).
OPTIONS
- Additional shelf.
- Industrial absorbent mat (ref. JF10D).
DOWNLOAD
To download this documentation, click here.
Ref. |
Desciption |
Dimensions HxWxD (mm) |
Compartment capacity |
Number of shelves |
Number of base trough |
Fan |
Compartment type |
Weight (kg) |
Storage (L) |
Retention (L) |
Acids |
Bases |
Flammables |
Toxics |
AB55 |
Under-bench cabinet
with fan |
Ext. 685x1105x500 Int.
(2x) 650x530x470 |
60 (2x 30) |
56 (2x 28) |
2 |
2 |
90 |
Yes |
Yes |
No |
No |
60 |
AB55SC |
Under-bench cabinet
without fan |
- |
Yes |
Yes |
No |
No |
AS55SC |
Under-bench cabinet
without fan |
- |
Yes |
No |
Yes |
No |
AB75 |
High cabinet with fan |
Ext. 2080x560x560 Int.
(2x) 890x530x470 |
110 (2x 55) |
70 (2x 35) |
4 |
2 |
110 |
Yes |
Yes |
No |
No |
75 |
AB75SC |
High cabinet without
fan |
- |
Yes |
Yes |
No |
No |
AS75SC |
High cabinet without
fan |
Ext. 1830x560x560 Int.
(2x) 890x530x470 |
- |
Yes |
No |
Yes |
No |
68 |
SV90 |
High cabinet without
fan |
Ext. 1995 x 550 x 560
Int. (3x) 640 x 540 x 480 |
90 (3x 30) |
84 (3x28) |
3 |
3 |
- |
Yes |
Yes |
Yes |
No |
90 |
ESV90 |
Additional shelf for
SV90 model |
2 |
EPSV90 |
Additional shelf in
PCV for SV90 model |
2 |
CASV90 |
Additional "Acid"
compartment equipment |
3 |
SV150 |
High cabinet without
fan |
Ext. 1830 x 1120 x 560
Int. (4x) 890 x 530 x 470 |
220 (4x 55) |
140 (4x35) |
8 |
4 |
- |
Yes |
Yes |
Yes |
Yes |
150 |
ESV150 |
Additional shelf for
SV150 model |
2 |
EPSV150 |
Additional shelf in
PCV for SV150 model |
2 |
CASV150 |
Additional "Acid"
compartment equipment |
2 |
The manufacturer keeps the right to modify technical characteristics without notice. Edition 02/2008.
